Construction Hoists

CONSTRUCTION HOISTS & ELEVATORS

American Service Group provides Alimak construction hoists which have top-of-the-line construction and offer many features including power cables, manual controls, galvanized cars and galvanized towers and enclosures. Alimak hoists are built to hold up to the most rigorous conditions and usage. We have affordable prices and many custom features are available including custom car size, and door location options.

Construction Elevator Hoist Dimensions & Capacity

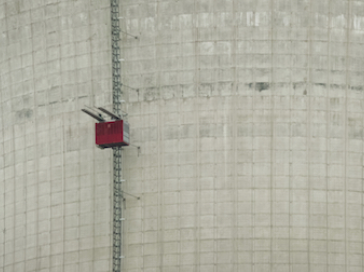

Constructing A Cooling Tower with red elevator on construction site of a new power station.

The chart below shows the lifting capacity, car dimensions, and lifting speed for industrial elevators. Customized capacities, car speeds, and features are available.

Alimak construction hoists, elevators, and transport platforms are constructed to hold up to the harsh environment of construction sites. They are built with capacities of 400 to 7,000 lbs. We also offer temporary elevator options, including temporary industrial elevators, temporary material hoists, and temporary transport platforms.

Construction
Hoist Type
Payload Capacity Traveling Speed Car Width (Internal) Car Length (Internal) Car Height (Internal)

ALIMAK SCANDO
650 XL

2,400–3,000 kg 250/400 m** 2.0 m 3.2–5.0 m 2.8 m
ALIMAK SCANDO
650 FC-S
250/400 m* 0–100 m/min. 1.5 m 3.2–3.9 and 3.9–4.6 m 2.3 m
ALIMAK SCANDO
650
1,500–3,200 kg 38–65 m/min.  1.5 m   3.2–3.9 and 3.9–4.6 m  2.3 m
ALIMAK SCANDO
450
Up to 2,000 kg 0–54 m/min. 1.4 m 2.0–3.2 m 2.13 m

Construction Lift Safety Compliance

Alimak construction hoists, elevators, and transport platforms are compliant with OSHA and ASME regulations. We make sure that the equipment we provide holds up to the top safety regulations.

Transport Platforms

Transport platforms are used to transport material vertically on a construction site. Transport platforms are a safe alternative to material hoists. They are open-air and attach directly to a building or structure. They are to be used by workers that are specifically trained to operate them.

Transport Platform Type Payload
Capacity
Traveling
Speed
Max number
of people*
Platform
Length
Platform
Width

HEK TPL 500 & 300

500/300 kg 12/10 m/min 5/3 1.6 m 1.4 m
HEK TPM 3000T 3,000 kg  12/24 m/min 8/0 4.8 m 1.6 m
HEK TPM 3000T2 3,000 kg 12/24 m/min  8/0  3.2 m   3.2 m

* Max number of people depending on authority having jurisdiction.

* Max number of people depending on authority having jurisdiction.
